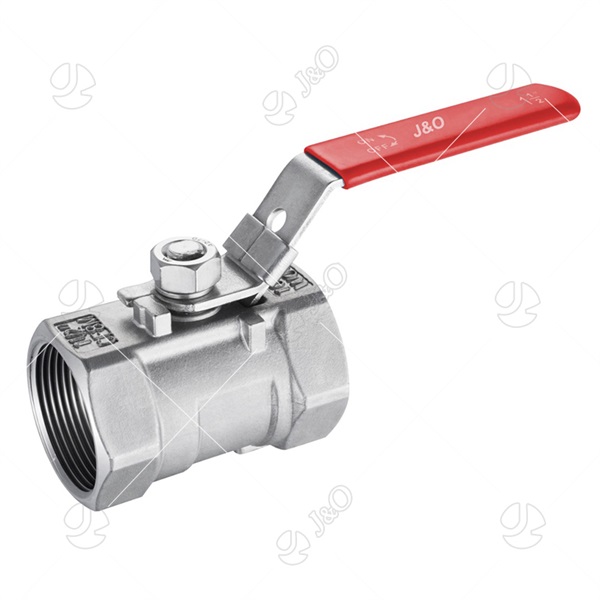

Stainless Steel Oil Gas 1 PC Female NPT BSPT Thread 1000WOG Ball Valve
* NO. JOBV51001
* 1000WOG
* Reduce Port
* CF8M,CF8,WCB
* Size: 1/4"-4"
* Locking Device Available
* Ends: BSP,BSPT,NPT,DIN,ISO
- Material:
- SS304, SS316
- Size:
- 1/4"-4"
- Type:
- 1PC
- Connection:
- Female
Stainless Steel Oil Gas 1 PC Female NPT BSPT Thread 1000WOG Ball Valve
- We manufacture Industrial Manual 1 PC Female Ball Valve, Manual 2 Piece Female Ball Valve, Manual 3 PCS Female Ball Valve, Pneuamtic Ball Valve and Electric Ball Valve.
- Ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a "floating ball") to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.
- Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.
Product Description
| Product Name: | Industry Ball Valve |
| Material: | SS304 or SS316 |
| Valve Type : | One piece,Two piece,Three piece |
| Standard: | 3A, SMS, DIN, ISO... |
| Size: | 1/4"-4" or DN10-DN100 |
| Operating Type: | Manual, Pneumatic, Electric |
| Connection Way: | Female, Flange, or Combinations |
| Seal Material: | Silicon, EPDM, PTFE,Viton, NBR |
| Packing Details: | within carton box or plywood case |
| Applied Industries: | Dairy, Cosmetic, Pharmaceutical, Food and Beverage Industries |
Product Parameter
